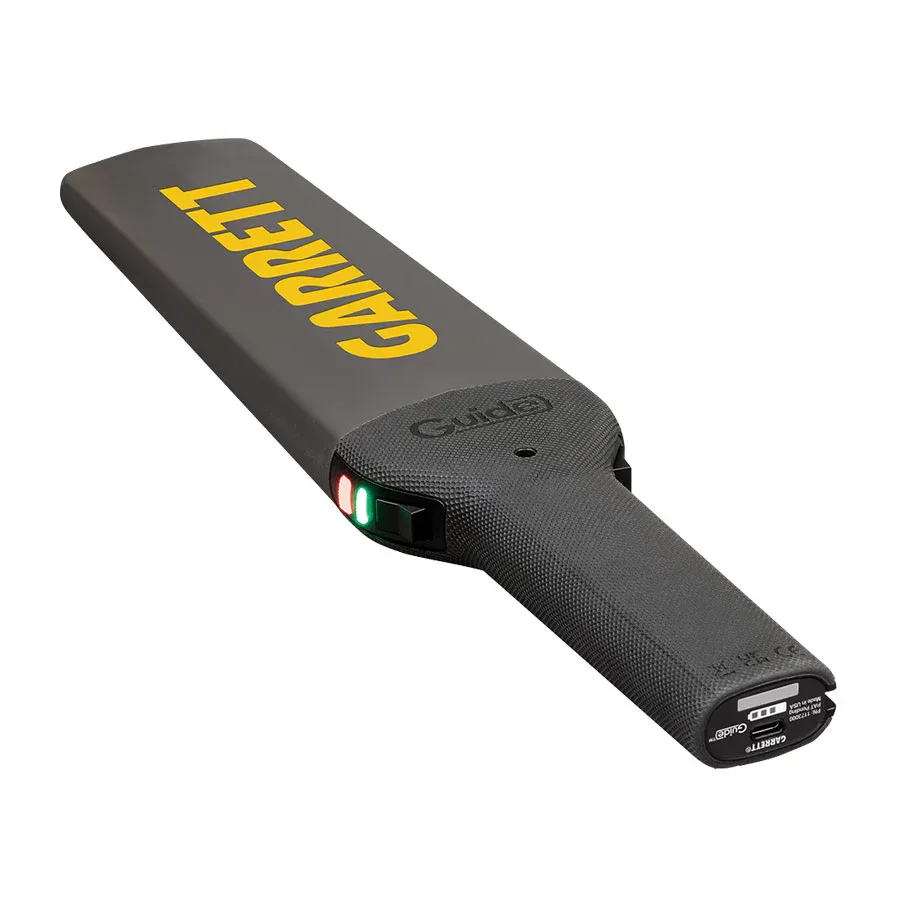

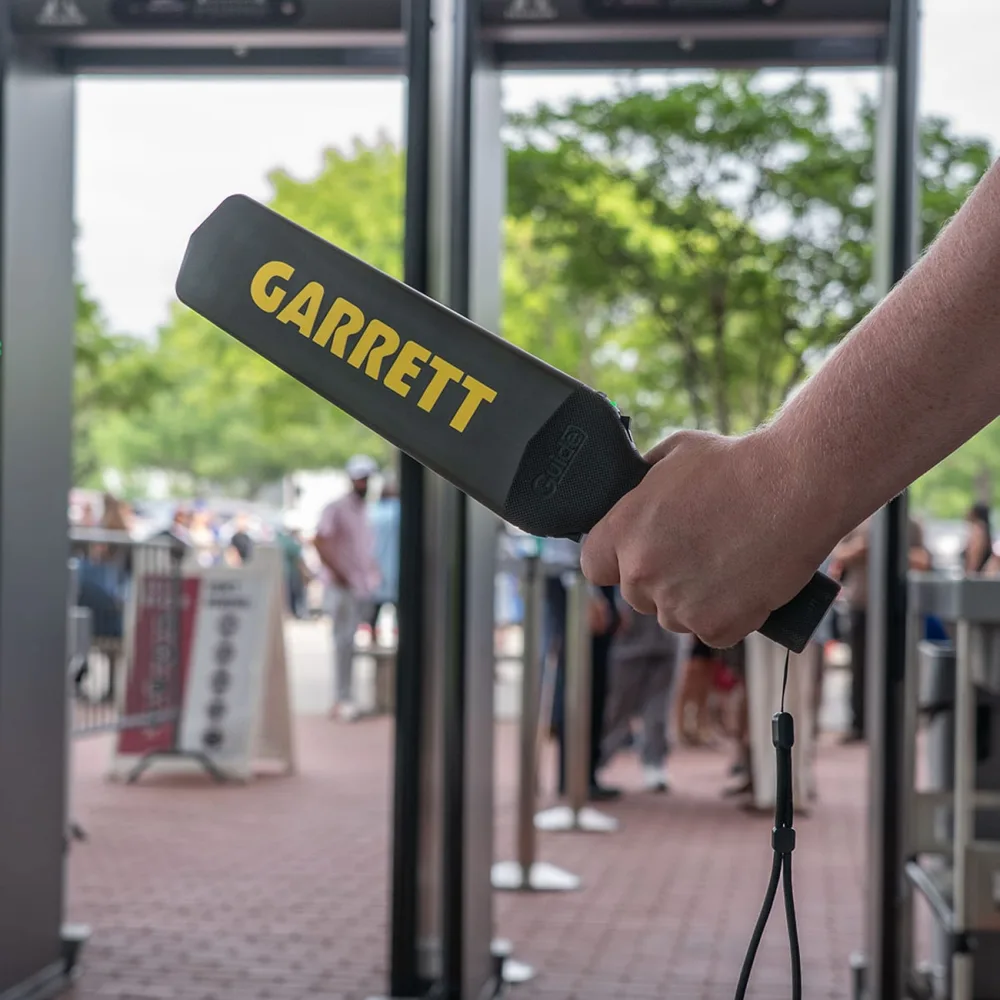

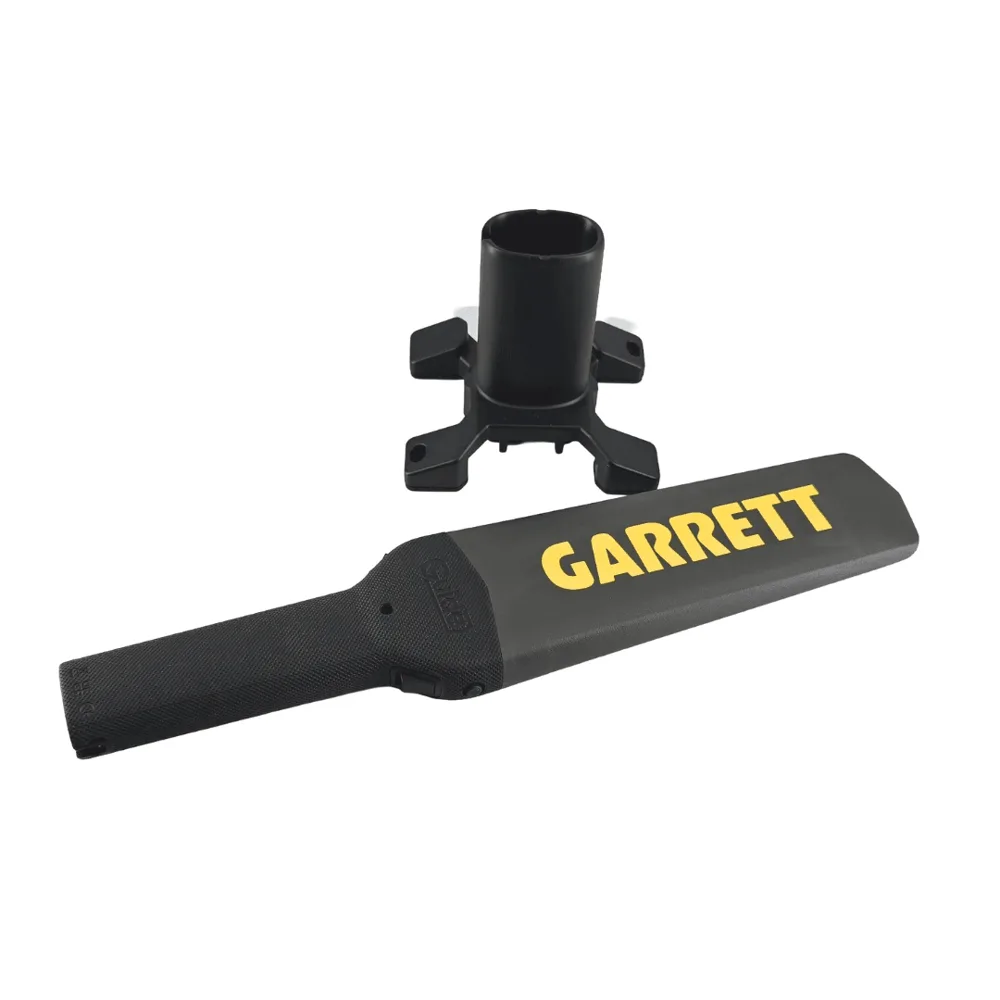

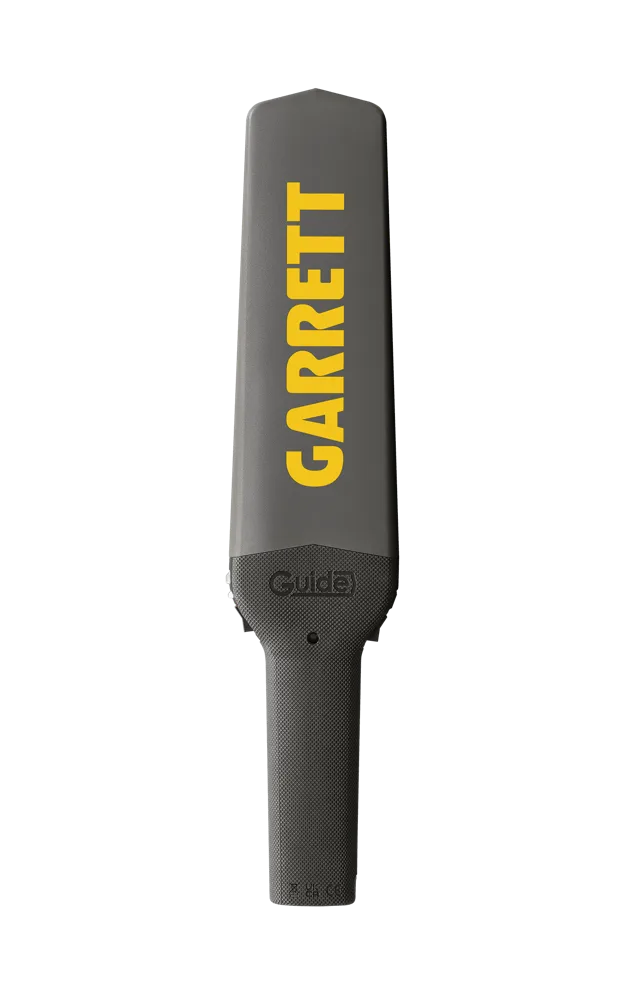

Garrett Guide
Garrett Guide Hand-Held Metal Detector Next-generation hand-held security. Sophisticated and simple metal detection for secondary screening.
- ECAC STAC / Certified
- TSA Approved
- NIJ-0602.02 / 0602.03
Key Advantages
ELEGANCE AND EASE-OF-USE.
Maximal Effect, Minimal Effort: Takes the hallmark simplicity of Garrett handhelds to the next level with one-button activation, three-button full control. More features and more accessibility than ever before. Refined Construction: Features a sleek and modern aesthetic with IP 65 waterproofing and a microtextured dimpled rubber grip, all constructed to military spec drop test requirements.
HIGH SECURITY DETECTION.
7 Selectable Sensitivities: Lets you find your targets how you want, from focusing on large threats at low sensitivities to prison and clean-room level security at higher levels. Address Interference Instantly: Eliminates electromagnetic interference from other handhelds by pressing the Offset Button and negates the impact of troublesome rebar with the Reduced Sensitivity Switch.
RECHARGEABLE AND LONG-LASTING.
Eliminate Waste: Comes with rechargeable lithium-ion batteries and a 3- foot USB-A to USB-C charging cable to reduce environmental waste and save on repeated battery purchases. Powerful Batteries, More Uptime: Operates for more than 125 hours on a single charge and fully charges in only 5 hours.
FAST AND CONSISTENT SCANS.
Large Scanning Surface: 8-inch scan length means better screening coverage, reduced operator fatigue, and simplified scanning patterns for rapid security checks. Self-Calibrating Design: Eliminates manual sensitivity adjustments, ensuring consistent and reliable performance.
Technical Specifications
| Detection Frequency | ~55 kHz |
|---|---|
| Audio Frequency | ~2kHz |
| Dimensions | Length: 16″ [406.4mm] |
| Width | 3.375″ [85.7mm] |
| Thickness | 1.125” [28.6mm] |
| Shipping Dimensions | Length: 21″ [533.4mm] |
| Width | 4″ [101.6mm] |
| Thickness | 2″ [50.8] |
| Weight | 1 lb [0.5Kg] |
| Voltage | 3.8 Vdc |
| Current | 15 mA typical |
| Battery | Lithium Ion 3.8V, 2.5Ahr |
| Operating Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity | 100% |
| Environmental | IP65 rating |
