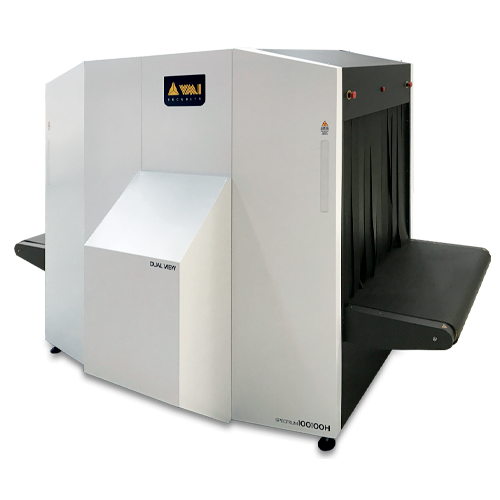

Spectrum 100100 HDV

Spectrum 100100 HDV has high image quality and automatic detection algorithm for drugs, explosives, and high density materials.

Spectrum 100100 HDV has high image quality and automatic detection algorithm for drugs, explosives, and high density materials.

Key Advantages

Integration with the Garrett metal detector portal

Integration between Spectrum equipment

Remote monitoring software

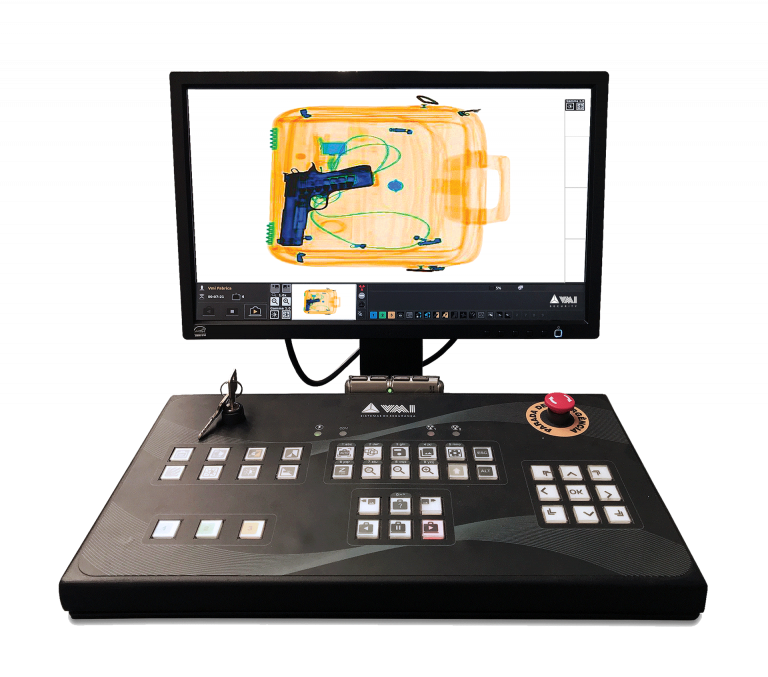

Suspicious image reanalysis software

ONVIF approved equipment

Video monitoring system integrated to the equipment

Linux operating system

Integration of data and images with Spectrum Bodyscan body inspection systems

Modern design with high durability LED indications

Robust and high durability operation keyboard

Interchangeable parts between all equipment in the Spectrum line, providing agility in maintenance

Real-time self-diagnosis system

Quick Specs

Specs

  • Dimensions:

    3483 (L)/1724 (W)/1988(H) [mm] 137.1” (L)/53.8”(W)/78.3” (H)

  • Weight:

    1390kg | 3064.4lbs

  • Operating temperature and humidity:

    0°C to 40°C / 5% to 95% (non-condensing)

  • Storage temperature and humidity:

    -40°C to 60°C / 5% to 95% (non-condensing)

  • Power supply:

    110 - 127VAC / 208 - 240VAC (-15% to +10%); 50Hz/60Hz, +/-3Hz

Specs

  • Power:

    1070VA

  • unnel dimensions:

    1013mm (W)/1003mm (H) 39.9”(W)/39.5” (H)

  • Conveyor speed:

    0,22m/s (adjustable)

  • Maximum load on the conveyor:

    200kg | 440.9lbs

  • High power generator:

    Dual 180kV operating at 170 kV

Applications
