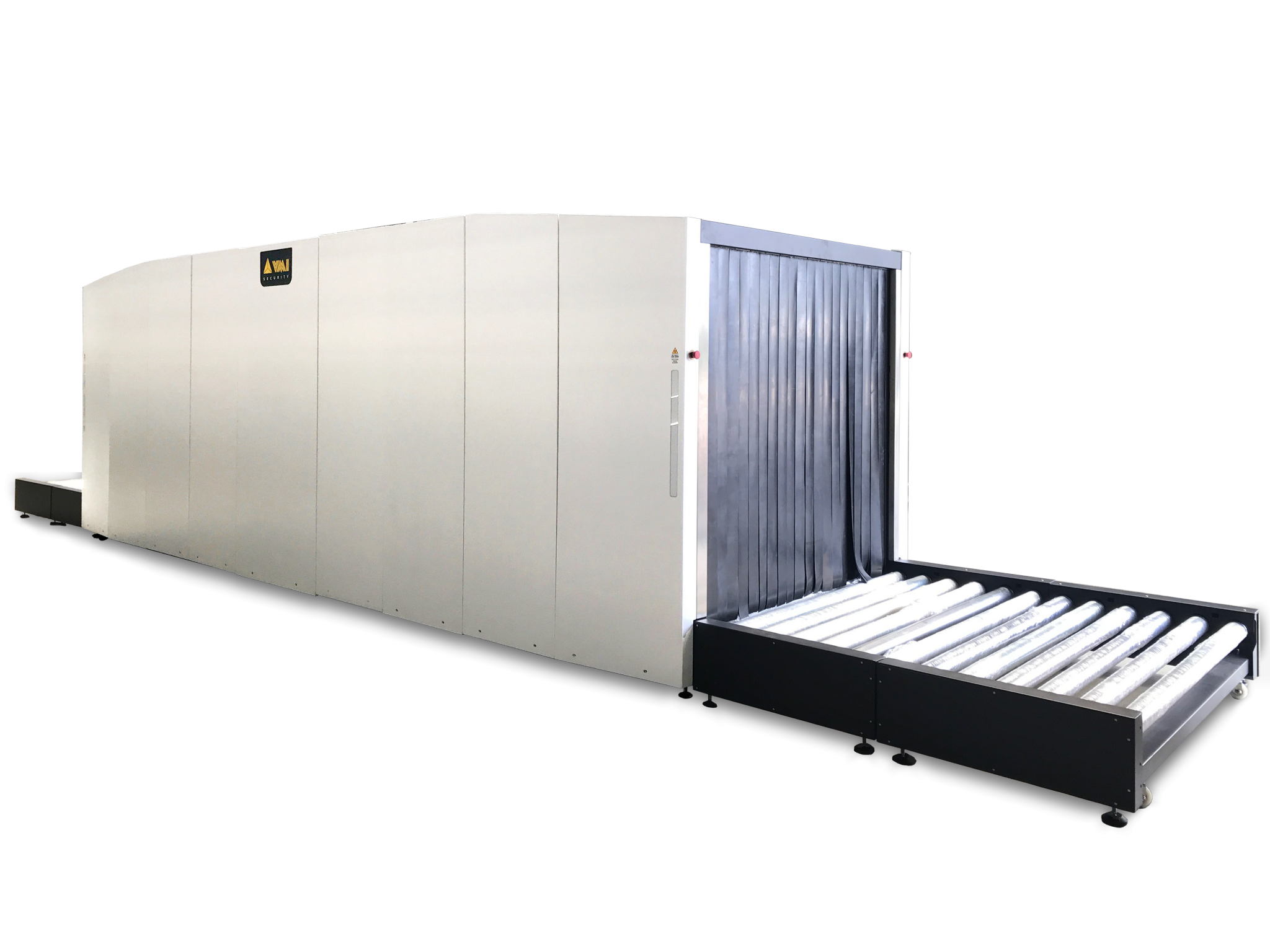

Spectrum 180180
Spectrum 180180 - Image 2
Category Tags , Brand:

Spectrum 180180

Spectrum 180180 provides good penetration for object recognition with sharpness and image quality.

Spectrum 180180 provides good penetration for object recognition with sharpness and image quality.

Download Datasheet PDF

Key Advantages

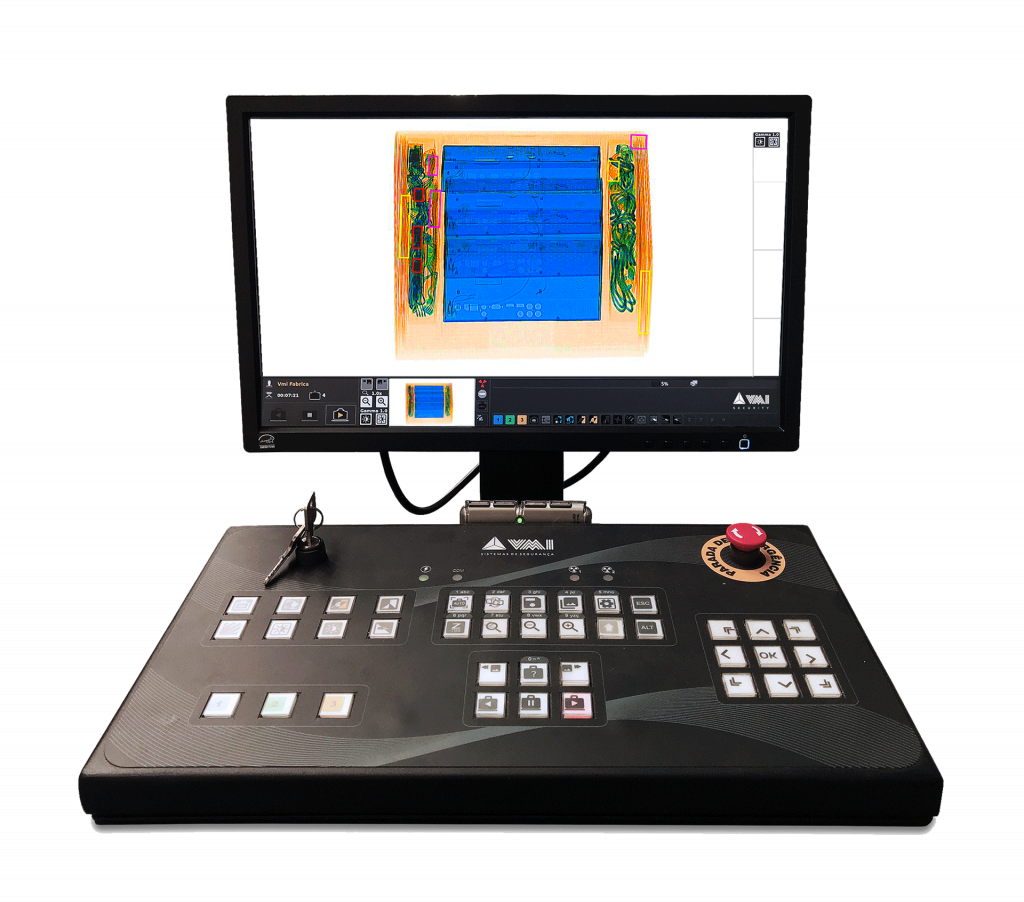

Remote monitoring software

Suspicious image reanalysis software

Linux operating system

Conveyor height settings

200kv and 320kv generator

Inspection of medium and large volumes

Quick Specs

Specs

  • Dimensions:

    8040 (L) / 3197 (W) / 2402 (H) [mm] 316.5" (L) / 125.9" (W) / 94.6" (H)

  • Weight:

    5000Kg | 11023.11lbs (approximately)

  • Operating temperature and humidity:

    0°C to 40°C / 5% to 95% (non-condensing)

  • Storage temperature and humidity:

    -40°C to 60°C / 5% to 95% (non-condensing)

  • Power supply:

    220VAC (-15% to +10%); 50Hz/60Hz, +/-3Hz

Specs

  • Power:

    2200VA

  • unnel dimensions:

    1820mm (W) / 1802mm (H) 71.6" (W) / 70.9" (H)

  • Conveyor speed:

    0,22m/s (adjustable)

  • Maximum load on the conveyor:

    3000kg | 6613.9lbs (Evenly distributed load)

  • Standard generator:

    200kV (configurable)

Applications

Airports

Airports

Customs Servies

Customs Servies

Carriers

Carriers

Parcel services

Parcel services

Transport operations

Transport operations
