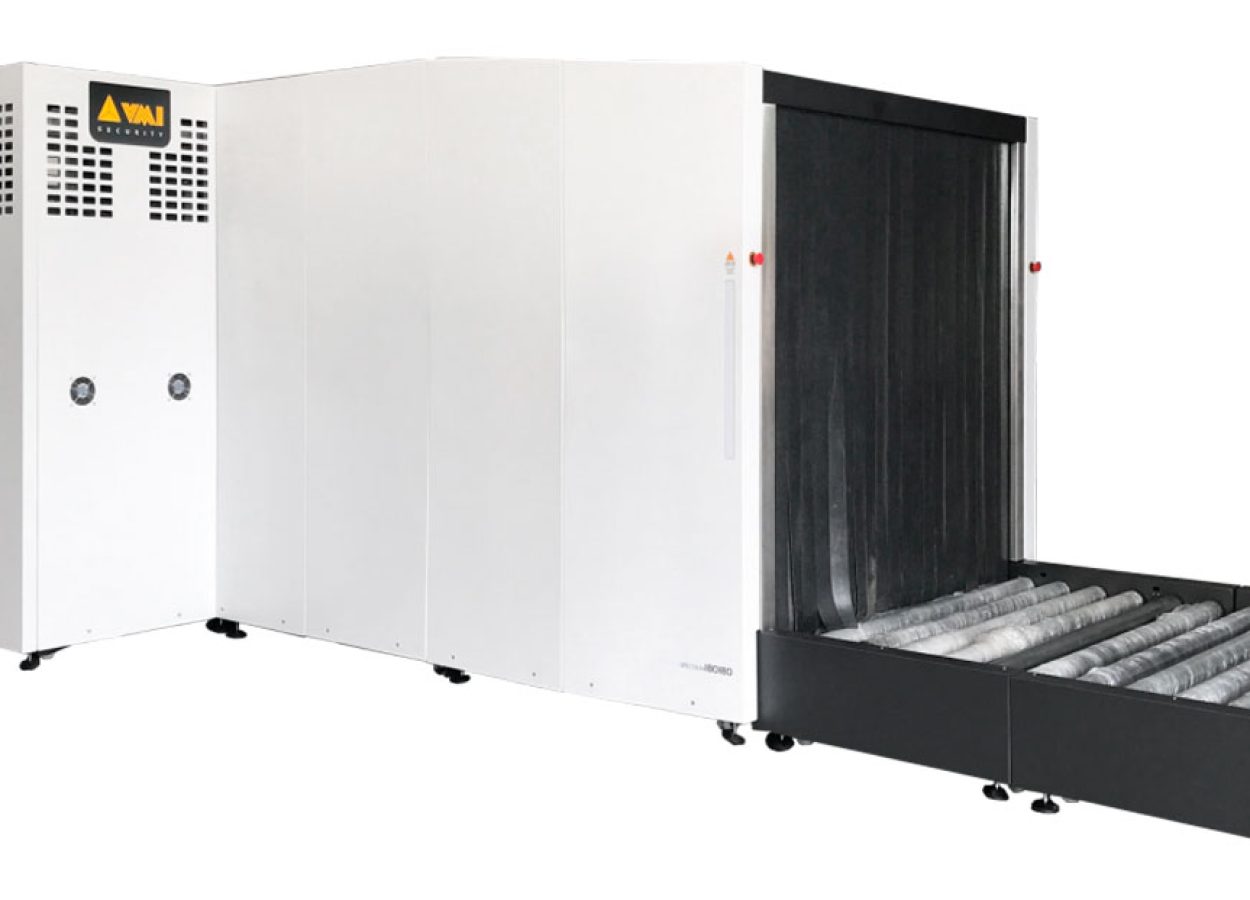

SPECTRUM 180180 DV

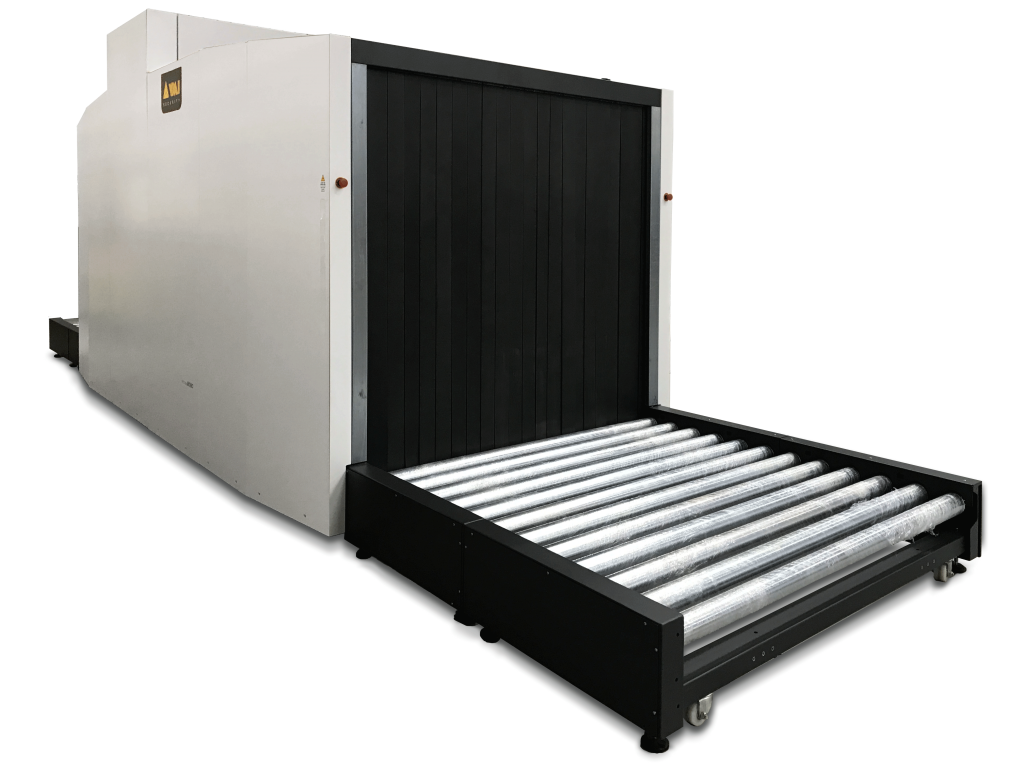

SPECTRUM 180180 DV - Image 2

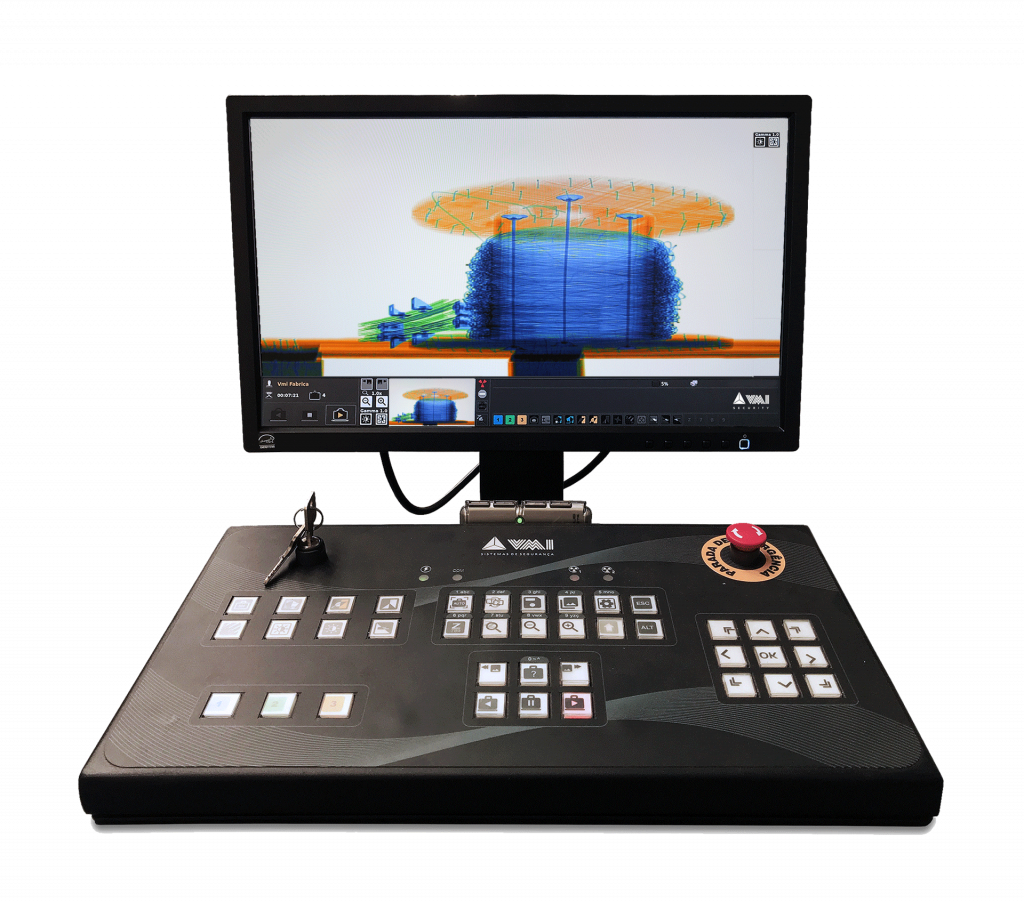

SPECTRUM 180180 DV - Image 3
Category Tags , Brand:

SPECTRUM 180180 DV

Spectrum 180180 DV is a high performance X-ray inspection equipment with automatic threat detection algorithm.

Spectrum 180180 DV is a high performance X-ray inspection equipment with automatic threat detection algorithm.

Download Datasheet PDF

Key Advantages

Remote monitoring software

200kv and 320kv generator

Suspicious image reanalysis software

Inspection of medium and large volumes

Linux operating system

Conveyor height settings

Quick Specs

Specs

  • Dimensions:

    8040 (L) / 3197 (W) / 2402 (H) [mm] 316.5" (L) / 125.9" (W) / 94.6" (H)

  • Weight:

    5000Kg | 11023.11lbs (approximately)

  • Operating temperature and humidity:

    0°C to 40°C / 5% to 95% (non-condensing)

  • Storage temperature and humidity:

    -40°C to 60°C / 5% to 95% (non-condensing)

  • Power supply:

    220VAC (-15% to +10%); 50Hz/60Hz, +/-3Hz

Specs

  • Power:

    2200VA

  • unnel dimensions:

    1820mm (W) / 1802mm (H) 71.6" (W) / 70.9" (H)

  • Conveyor speed:

    0,22m/s (adjustable)

  • Maximum load on the conveyor:

    3000kg | 6613.9lbs (Evenly distributed load)

  • Standard generator:

    200kV (configurable)

Applications

Airports

Airports

Distribution centers

Distribution centers

Customs servies

Customs servies

Logistics

Logistics

Carriers

Carriers

Get the Full Technical File

Enter your details to download the full product technical specifications.

1

Contact info

2

Download pdf

Mobile Security Compliance

Compliance & Industry Certifications
Aligned with international standards to ensure quality, safety, and operational excellence across all solutions.

  • GACA Approved - Air Cargo
  • TSA Qualified
