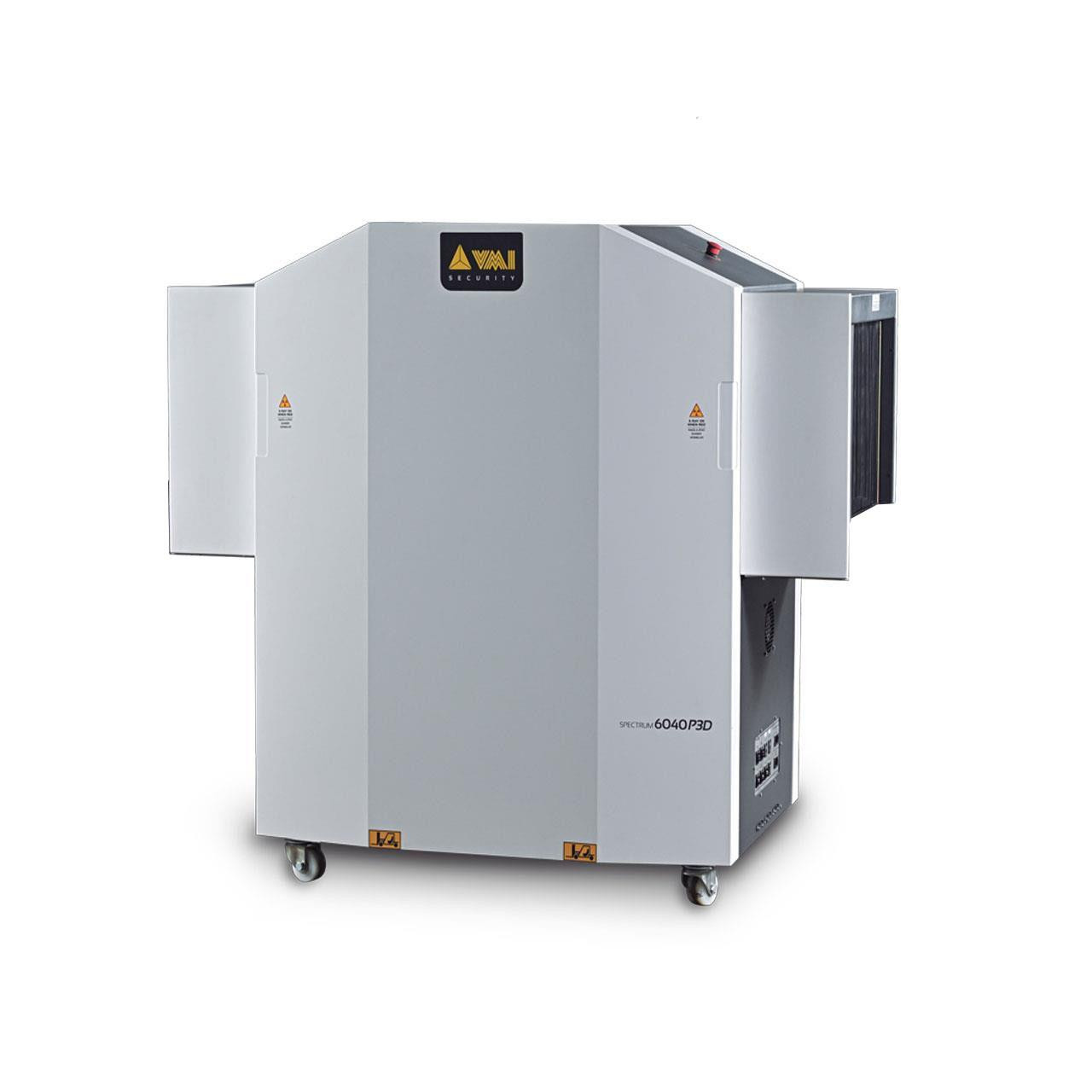

Spectrum 6040 P3D

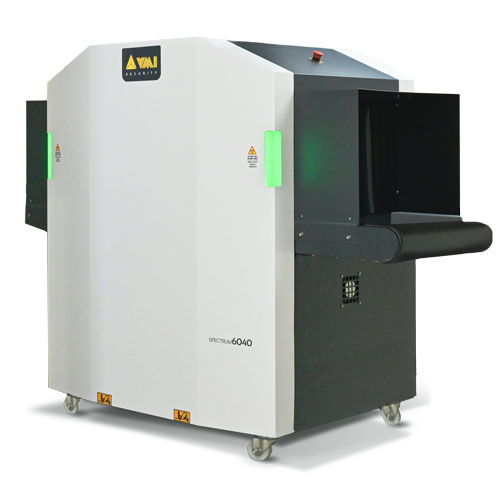

Spectrum 6040 P3D - Image 2
Spectrum 6040 P3D - Image 3

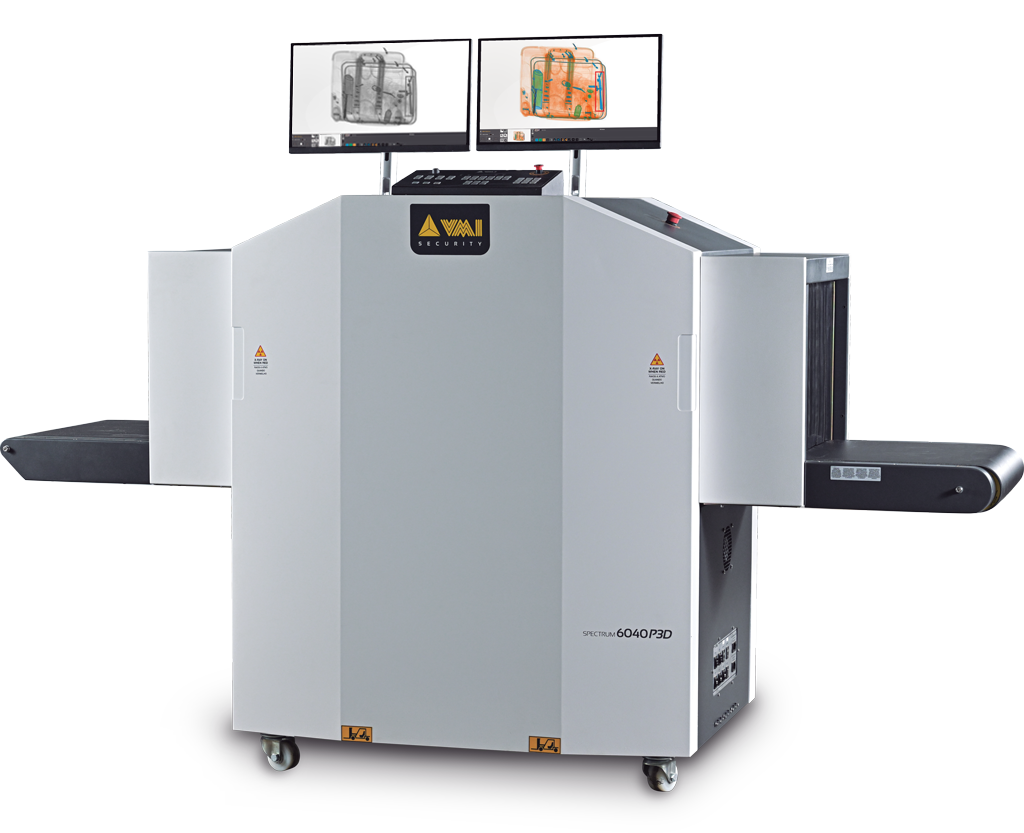

Spectrum 6040 P3D - Image 4
Category Tags , Brand:

Spectrum 6040 P3D

VMI’s Spectrum 6040 P3D has technology capable of producing perspectives that capture the depth and detail of inspected volumes.

VMI’s Spectrum 6040 P3D has technology capable of producing perspectives that capture the depth and detail of inspected volumes.

Download Datasheet PDF

Key Advantages

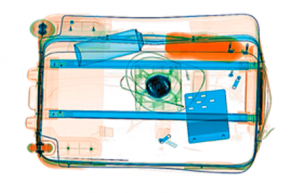

3D Perspective

WiFi compatibility

Automatic detection algorithm for drugs, explosives, and high density materials

Integration with the Garrett metal detector portal

Integration between Spectrum equipment

Remote monitoring software

Suspicious image reanalysis software

ONVIF approved equipment

Video monitoring system integrated to the equipment

Linux operating system

Integration of data and images with Spectrum Bodyscan body inspection systems

Modern design with high durability LED indications

Robust and high durability operation keyboard

Interchangeable parts between all equipment in the Spectrum line, providing agility in maintenance

Real-time self-diagnosis system

Dual Mode Z-effective

Quick Specs

Specs

  • Dimensions:

    1960(L) / 926(W) / 1432(H) [mm] 77,166” (L) / 36,457”(W) / 56,38”(H)

  • Weight:

    500kg / 1102,31lbs

  • Operating temperature and humidity:

    0°C to 40°C / 5% to 95% (non-condensing)

  • Storage temperature and humidity:

    -40°C to 60°C / 5% to 95% (non-condensing)

  • Power supply:

    110 - 127VAC / 208 - 240VAC (-15% to +10%); 50Hz/60Hz, +/-3Hz

Specs

  • Power:

    740VA

  • Tunnel dimensions:

    620mm (W) / 420mm (H) 24,41”(W) / 16,536” (H)

  • Conveyor speed:

    0,22m/s (configurable)

  • Maximum load on the conveyor:

    165kg | 363,763lbs

  • High Power Generator:

    180kV operating at 170 kV

Applications

Airports

Airports

Prisons

Prisons

Stadiums

Stadiums

Courts

Courts

Railways

Railways

Subways

Subways

Parcel services

Parcel services
