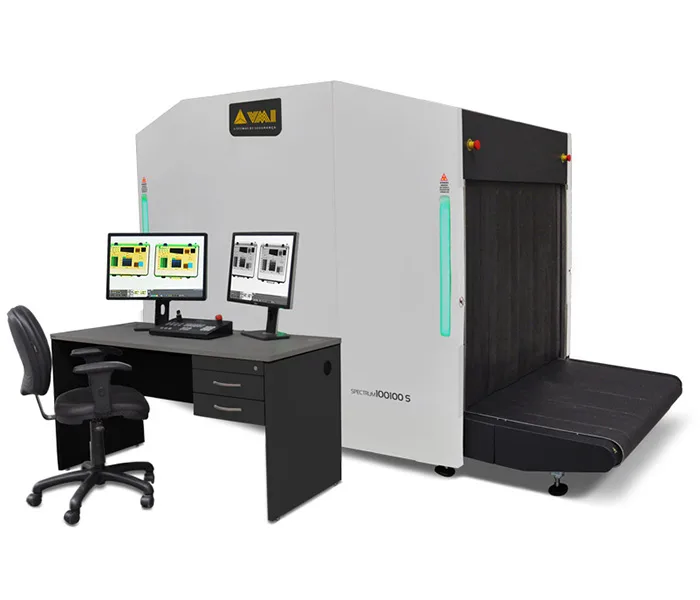

Spectrum 100100
Spectrum 100100 has a modern design and high image quality, meet the needs of areas that require high security with full tracking of cargo of various sizes.
Key Advantages
- Integration with the Garrett metal detector portal
- Integration between Spectrum equipment
- Remote monitoring software
- Suspicious image reanalysis software
- ONVIF approved equipment
- Video monitoring system integrated to the equipment
- Linux operating system
- Integration of data and images with Spectrum Bodyscan body inspection systems
- Modern design with high durability LED indications

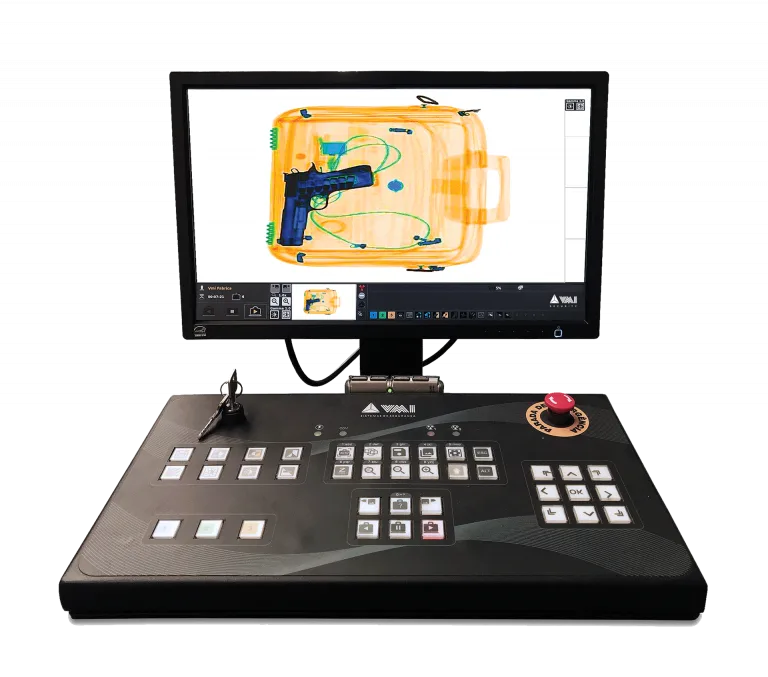

- Robust and high durability operation keyboard
- Interchangeable parts between all equipment in the Spectrum line, providing agility in maintenance
- Real-time self-diagnosis system
Technical Specifications
| Dimensions | 3483 (L)/1724 (W)/1988(H) [mm] 137.1” (L)/53.8”(W)/78.3” (H) |
|---|---|
| Approximate weight | 1390kg | 3064.4lbs |
| Operating temperature and humidity | 0°C to 40°C / 5% to 95% (non-condensing) |
| Storage temperature and humidity | -40°C to 60°C / 5% to 95% (non-condensing) |
| Power supply | 110 - 127VAC / 208 - 240VAC (-15% to +10%); 50Hz/60Hz, +/-3Hz |
| Power | 1070VA |
| unnel dimensions | 1013mm (W)/1003mm (H) 39.9”(W)/39.5” (H) |
| Conveyor speed | 0,22m/s (adjustable) |
| Maximum load on the conveyor | 200kg | 440.9lbs |
| High power generator | Dual 180kV operating at 170 kV |
Applications
- Airports
- Prisons
- Parcel services
- Customs facilities
- Transport operations
- Carriers
