VMI Security

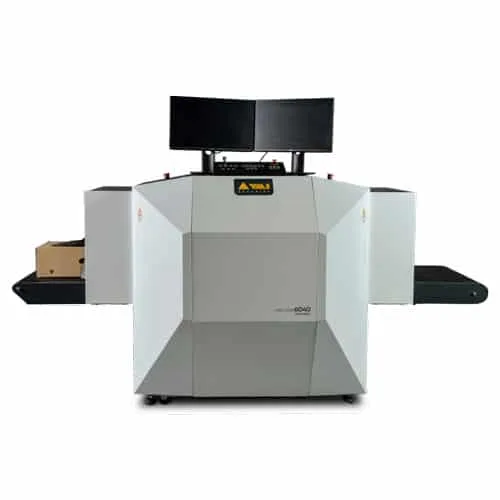

Spectrum 6040 DV
Spectrum 6040 DV has excellent threat inspection and detection capabilities. with powerful X-ray generators, achieving high levels of penetration and quality in image generation.
- TSA Qualified
Key Advantages
- Integration with the Garrett metal detector portal
- Integration between Spectrum equipment

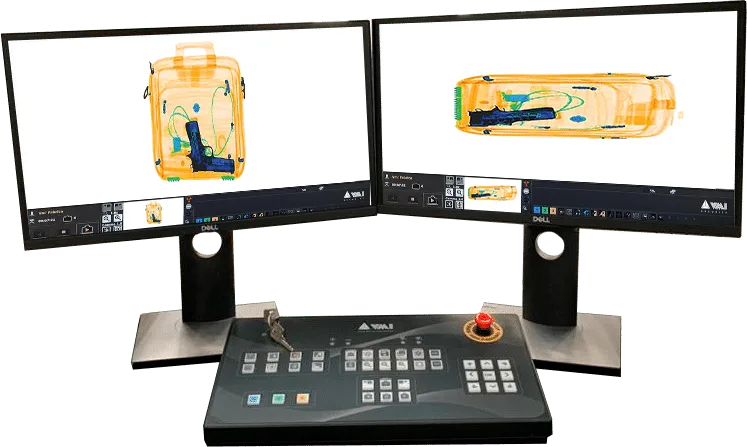

- Remote monitoring software
- Suspicious image reanalysis software
- ONVIF approved equipment
- Video monitoring system integrated to the equipment
- Linux operating system
- Integration of data and images with Spectrum Bodyscan body inspection systems
- Modern design with high durability LED indications
- Robust and high durability operation keyboard
- Interchangeable parts between all equipment in the Spectrum line, providing agility in maintenance
- Real-time self-diagnosis system
Technical Specifications
| Dimensions | 2528 (L) / 1164 (W)/ 1243 (H) [mm] 99.5” (L)/45.8”(W)/48.9” (H) |
|---|---|
| Approximate weight | 748 kg | 1801.2 lbs |
| Operating temperature and humidity | 0°C to 40°C / 5% to 95% (non-condensing) |
| Storage temperature and humidity | -40°C to 60°C / 5% to 95% (non-condensing) |
| Power supply | 110 - 127 VAC / 208 - 240 VAC (-15% to +10%); 50 Hz/60 Hz, +/-3 Hz |
| Cooling | Insulating oil |
| Power | 1060 VA |
| Tunnel dimensions | 619 (W)/419 (H) [mm] 24.37”(W)/16.5” (H) |
| Standard generator | 160 kV operating at 150 kV |
| High power generator | 180 kV operating at 170 kV |
| Conveyor speed | 0,22 m/s |
| Maximum load on the conveyor | 80 kg | optional 160 kg 176.4 lbs | optional 352.7 lbs |
Applications
- Airports
- Prisons
- Stadiums
- Courts
