VMI Security

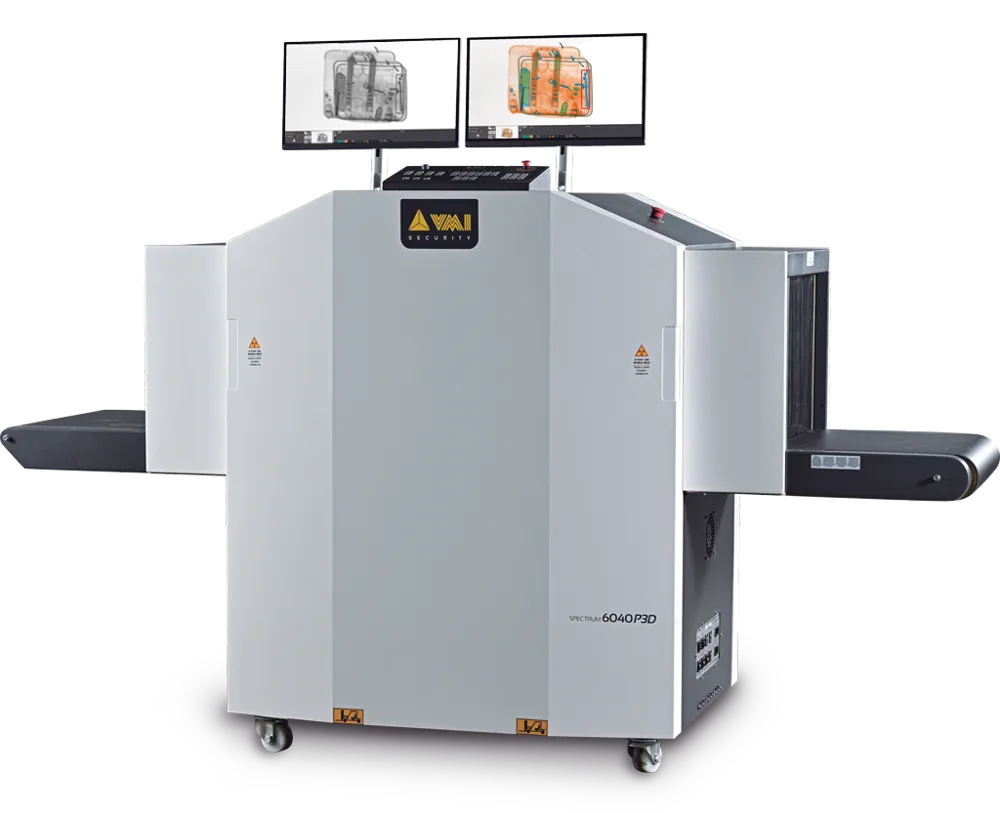

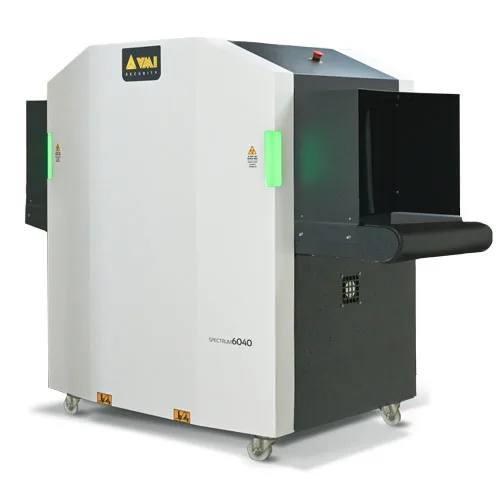

Spectrum 6040 P3D

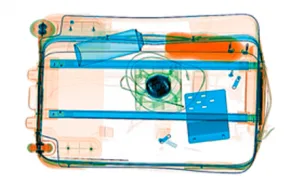

VMI’s Spectrum 6040 P3D has technology capable of producing perspectives that capture the depth and detail of inspected volumes.
Key Advantages
- 3D Perspective
- WiFi compatibility
- Automatic detection algorithm for drugs, explosives, and high density materials
- Integration with the Garrett metal detector portal
- Integration between Spectrum equipment
- Remote monitoring software
- Suspicious image reanalysis software
- ONVIF approved equipment
- Video monitoring system integrated to the equipment
- Linux operating system
- Integration of data and images with Spectrum Bodyscan body inspection systems
- Modern design with high durability LED indications
- Robust and high durability operation keyboard
- Interchangeable parts between all equipment in the Spectrum line, providing agility in maintenance
- Real-time self-diagnosis system
- Dual Mode Z-effective
Technical Specifications
| Dimensions | 1960(L) / 926(W) / 1432(H) [mm] 77,166” (L) / 36,457”(W) / 56,38”(H) |
|---|---|
| Weight | 500kg / 1102,31lbs |
| Operating temperature and humidity | 0°C to 40°C / 5% to 95% (non-condensing) |
| Storage temperature and humidity | -40°C to 60°C / 5% to 95% (non-condensing) |
| Power supply | 110 - 127VAC / 208 - 240VAC (-15% to +10%); 50Hz/60Hz, +/-3Hz |
| Power | 740VA |
| Tunnel dimensions | 620mm (W) / 420mm (H) 24,41”(W) / 16,536” (H) |
| Conveyor speed | 0,22m/s (configurable) |
| Maximum load on the conveyor | 165kg | 363,763lbs |
| High Power Generator | 180kV operating at 170 kV |
Applications
- Airports
- Prisons
- Stadiums
- Courts
- Railways
- Subways
- Parcel services
