VMI Security
Spectrum Cargo

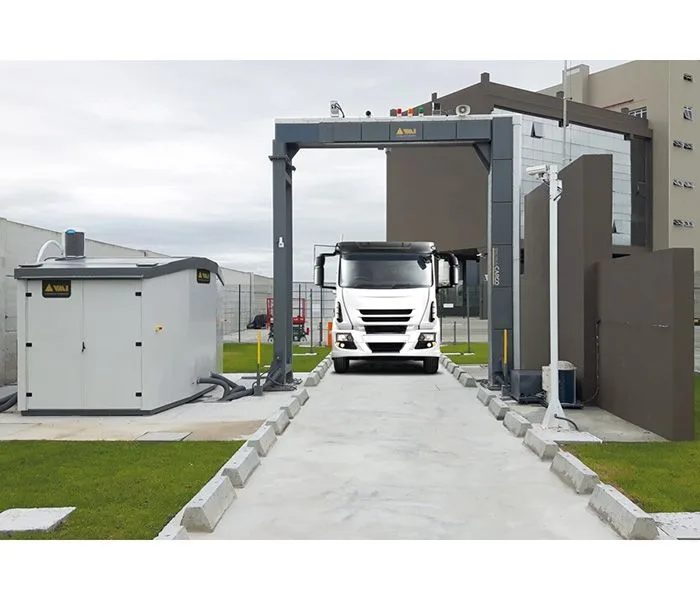

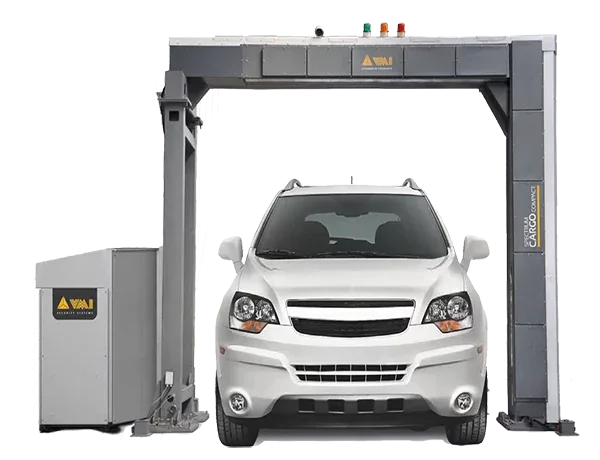

Spectrum Cargo, the most modern and reliable linear accelerator in the world, enabling high penetration into steel and fast data transfer.
Key Advantages
- Integration with dynamic weighing scale
- Integration with OCR for containers and vehicles license plates
- Automatic identification system for radioactive materials with high inspection capacity
- Self-diagnosis system in real time
Technical Specifications
| Speed | 3km/h ~ 15km/h | 1.9mph ~ 9.3mph |
|---|---|
| Maximum vehicle dimension | 3.3m (W) / 4.6m (H) | 10.8 (W) / 15.1ft (H) / Length: Unlimited |
| Inspection Flow | Up to 150 vehicles per hour (vehicle with a 25m | 82ft container) |
| Steel penetration | 330mm | 13” (6MeV) |
| Wire detection | 2mm in diameter |
| Contrast sensitivity | 1% |
| Beam energy | 6MeV (Single energy) 6/4MeV (Dual energy) |
| Maximum dose absorbed by the driver | ≤ 0.1µSv / inspection |
| Operating temperature | -20°C to 40°C (-40°C to 55°C optional) |
| Power | 30kVA |
Applications
- Airports
- Borders
- Ports
