VMI Security
Spectrum Compact

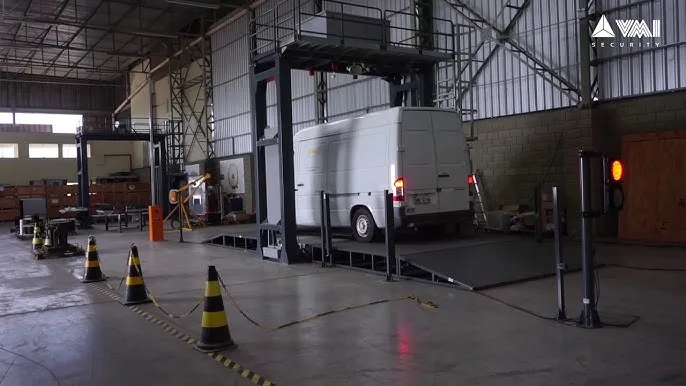

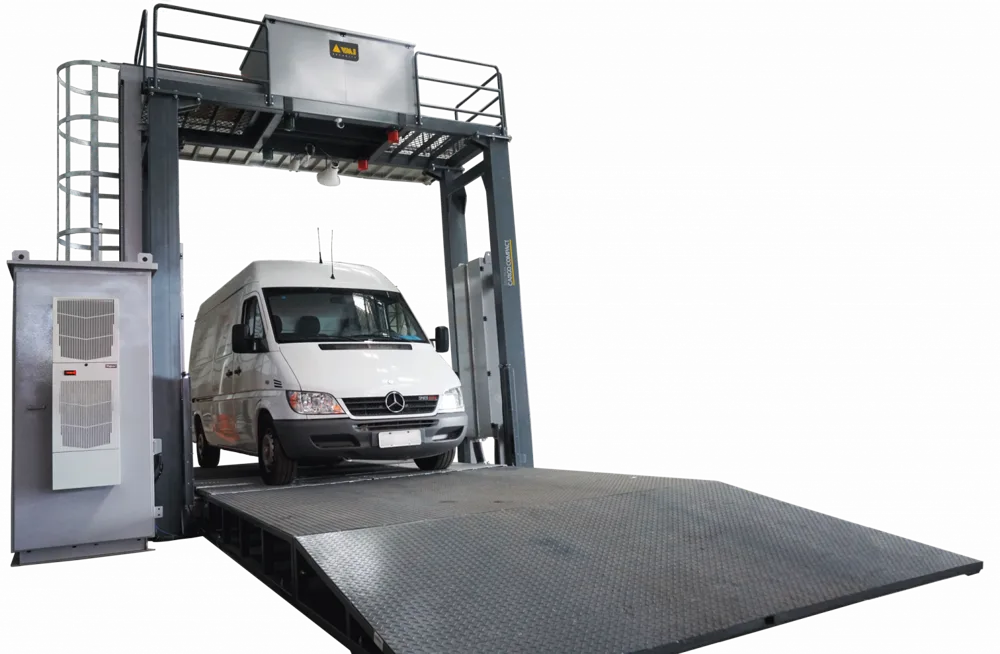

Spectrum Cargo Compact, developed for non-intrusive inspection of small and medium-sized cars.
Key Advantages
- Integration with OCR for vehicle license plate
- Automatic identification system for radioactive materials
- High inspection capacity, up to 180 vehicles per hour
- Self-diagnosis system in real time
- High power generator
- 320kV X-ray generator, with forced oil cooling, allows continuous operation of the equipment with a high volume of inspections, in addition to guaranteeing a long lifespan to the imaging system
Technical Specifications
| Type X-ray source | X-ray tube cooled with oil |
|---|---|
| Speed | 4km/h ~ 15km/h |
| Maximum vehicle size | 3m (W); 3m (H); Length: No limit |
| Inspection method | Drive Through |
| Inspection Flow | 150 vehicles per hour |
| Beam energy | 320kV (200kV optional) |
| Steel Penetration | 70mm (40mm) |
| Maximum dose absorbed by the driver | ≤ 0.19µSv (≤ 0.12µSv) inspection at 8km/h |
Applications
- Highways
- Checkpoints
- Border control posts
Other devices in this category
Need a quote or technical advice for Spectrum Compact?
Our team will help you choose the right configuration, delivery and after-sales support across the Middle East.
Request a Quote
